SGG EQUINOX | Saint Gobain

SGG EQUINOX

Provides the twin benefits of optimum light transmission for tropical conditions and excellent thermal comfort across all seasons.

SGG Equinox is inspired by the Equinox phenomenon, when the duration of day and night are approximately equal across the globe. A biennial occurrence, it not only provides the right amount of light for wellbeing of the habitat but also ensures excellent thermal comfort. In a tropical country like India, there is abundant daylight for almost 10 months a year which causes visual discomfort to the occupants. Hence there is a need to optimize the light entering the building to avoid glare. Buildings with poor insulation allow more heat inside during sunny days and disperse more heat to the atmosphere during winter due to differential temperature. SGG Equinox was hence developed to ensure the ideal combination of optimum light and thermal comfort for wellbeing. It is EPD verified, Green Pro certified and complies with green building requirements.

Suitable for use in Insulated / Double glazed units.

  • Optimum light transmission for Indian tropical conditions
  • Low solar factor
  • Low U-Value
  • Minimum visual glare
  • UV protection
  • Green rating compliant

applications

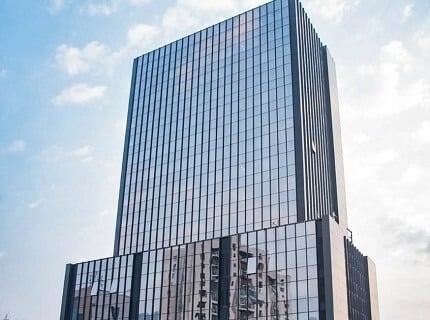

Facades

Window

Skylights

Thickness ‎

SGG Equinox Blue and SGG Equinox Green are available in thicknesses 6mm & 8mm, while SGG Equinox Neutral is also available in 10mm and 12mm.







PERFORMANCE TABLE

Product Visual Comfort Thermal Comfort Thermal Comfort
SGG Equinox
Visual Light Transmission(%)
External Reflection(%)
Internal Reflection(%)
Solar Factor (SF/SHGC)
Shading co-efficient (SC)
U-value (W/Sq.mK)
Selectivity Tuv (%) UV cutdown(%)
Neutral 30 13 10 0.2 0.23 1.6 1.50 10 90
Green 25 10 10 0.17 0.19 1.6 1.47 4 96
Blue 19 8 10 0.15 0.17 1.6 1.27 4 96
