SGG HORIZON

SGG Horizon from the Infinity bouquet of glass products from Saint-Gobain, provides advanced solar control and is made using state-of-the-art nanotechnology, in a unique plasma environment. A unique glass, SGG Horizon series, comes with extremely low internal reflections enabling clear vision during the day as well as night.

Internal reflections are usually inevitable during night times when the lux levels outside are much lower than that of the outside. This effect is usually enhanced with coated glasses but now with SGG Horizon, modern facades can now be gifted with the best of solar control with minimum internal reflections enabling the occupant to better visual connect even during night.

Available in 5 mm, 6 mm and 8 mm thicknesses (10 mm and 12 mm thickness are available on request) allowing for large sized units. SGG Horizon is now available in Jumbo sizes as well.

  • Advanced solar protection
  • Low Internal Reflection
  • Visual light transmission

range

SGG Horizon Clear

SGG Horizon Green

SGG Horizon Blue

SGG Horizon Clear

SGG Horizon Green

SGG Horizon Blue

applications


Residential Buildings

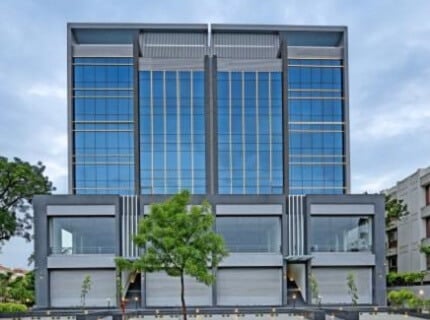

Commercial Buildings

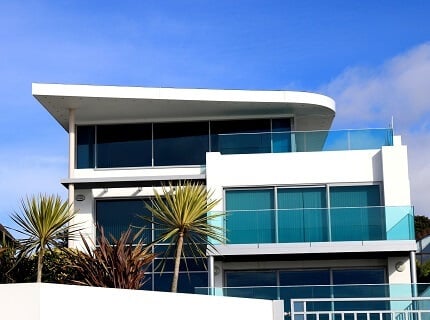

Windows

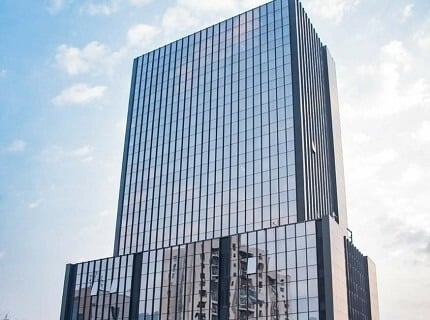

Façade

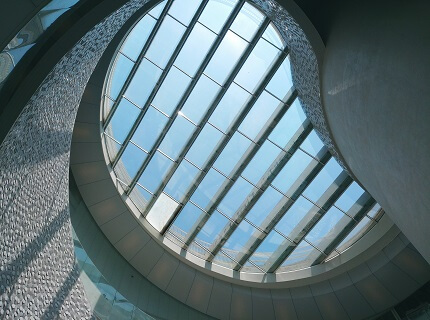

Skylights

Performance

Product Values gives for 6mm| Luminous and Solar Characteristics are determined as per EN 410 | Thermaltransmittance is determined as per EN 673



Single Glazing



Product Visual Comfort Thermal Comfort Thermal Comfort
Product Visual light transmission(%) External Reflection(%) Internal Reflection(%) Solar Factor(SF/SHGC) Shading co-efficient(SC) U-value (W/m2K) Selectivity Tuv(%) UV cut down(%)
SGG Horizon Clear 45 22 4 0.44 0.51 4.9 1.02 33 67
SGG Horizon Green 37 17 4 0.36 0.41 4.9 1.03 12 88
SGG Horizon Blue 29 12 4 0.33 0.39 4.9 0.88 11 89
SGG Horizon Bronze 25 10 4 0.34 0.39 4.9 0.74 11 89

Double Glazing

Product Visual Comfort Thermal Comfort Thermal Comfort
Product Visual light transmission(%) External Reflection(%) Internal Reflection(%) Solar Factor(SF/SHGC) Shading co-efficient(SC) U-value (W/m2K) Selectivity Tuv(%) UV cut down(%)
SGG Horizon Clear 40 24 12 0.37 0.42 2.5 1.08 25 75
SGG Horizon Green 34 18 11 0.27 0.31 2.5 1.26 10 90
SGG Horizon Blue 26 12 11 0.25 0.28 2.5 1.04 10 90
SGG Horizon Bronze 22 10 11 0.25 0.29 2.5 0.88 8 92
