SGG Planitherm | Low- e glass with thermal insulation

SGG PLANITHERM

SGG Planitherm is an advanced thermal insulation glass (Low-E) that reflects long wave heat radiation and provides high thermal insulation.

SGG Planitherm is an advanced coated glass manufactured by the state-of-art magnetron sputtering process under vacuum conditions. Being a low-e glass, SGG Planitherm, reflects most of the long-wave heat radiations, allowing for excellent thermal insulation and maximum occupant comfort. It comes with qualities of excellent light transmission and low reflection, which allows maximum light penetration through the glass and provides impeccable clarity.

SGG Planitherm is available in neutral, green, blue and bronze shades

It is suitable for use in double glazed units

  • High thermal insulation
  • Enhanced light transmission
  • Subtle reflections
  • Clear view
  • UV protection

range

SGG Planitherm Pristine White (PLT T)

SGG Planitherm Satin Blue (PLT TB)

SGG Planitherm Mint Green (PLT TG)

SGG Planitherm Pristine White (PLT T)

SGG Planitherm Satin Blue (PLT TB)

SGG Planitherm Mint Green (PLT TG)

applications

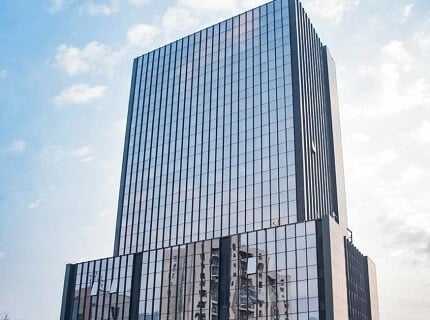

Facades

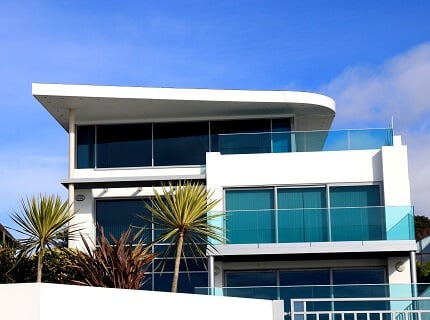

Windows

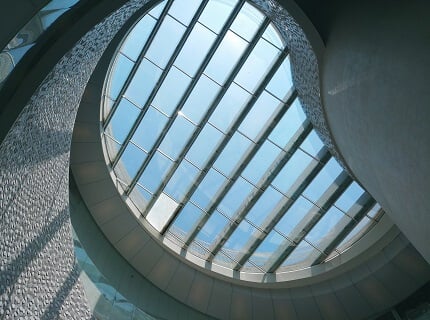

Skylights

thickness ‎

Available in 4mm, 5mm, 6mm, 8mm* (available on special request),10mm and 12mm (in neutral shades).







PERFORMANCE TABLE

Product Visual Comfort Thermal Comfort Thermal Comfort
SGG Planitherm
Visual Light Transmission(%)
External Reflection(%)
Internal Reflection(%)
Solar Factor (SF/SHGC)
Shading Co-efficient (SC)
U-Value (W/m2K)
Selectivity Tuv(%) UV cutdown(%)
Pristine White
(PLT T)
75
12
12
0.57
0.66
1.8
1.32 40 60
Mint Green
(PLT TG)
62
9
11
0.4
0.46
1.8
1.55 16 84
Satin Blue
(PLT TB)
48
7
11
0.35
0.4
1.8
1.37 16 84

SGG Planitherm
