Architects often finalize glazing specifications after the fire strategy has already established compartment boundaries and life-safety requirements. The challenge is that fire safety drawings and glazing specifications are frequently developed through separate workflows, creating coordination gaps that only become visible during approvals, detailed design reviews, or construction. Fire safety drawings are therefore more than a compliance document; they provide the framework against which every fire-resisting element, including glazing, must be validated. Before any fire-safe glazing system is specified, architects should confirm that the intended assembly aligns with the project's fire strategy, compartmentation requirements, interface conditions, and code obligations.

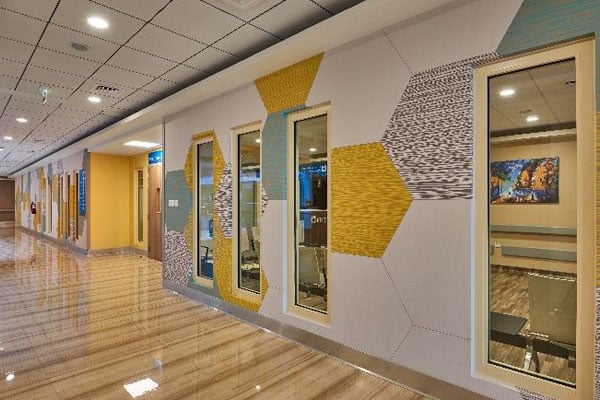

Fire safety drawings define fire-rated glazing requirements
Fire safety drawings translate life-safety objectives into a coordinated design framework that can be reviewed, approved, and implemented across multiple disciplines. They identify the locations where fire safety construction is required and define how fire compartmentation, escape routes, and protected areas are intended to function during a fire event.
Fire strategy is the document that defines compartmentation, evacuation philosophy, fire resisting construction, and life-safety objectives within a building.
The relationship between fire safety drawings and fire strategy is critical. While the fire strategy establishes performance requirements, the drawings communicate where those requirements apply within the building. If glazing specifications are developed independently of these documents, architects risk introducing systems that do not align with the intended compartmentation approach.
This becomes particularly important for complex projects where fire-resisting glazed doors, and partitions intersect with architectural design objectives. A glazing specification should therefore be treated as the outcome of fire safety planning rather than a separate design exercise.
Also read How Architects Specify Fire-Rated Glass for Passive Fire Protection
Before reviewing glazing specifications, architects should first verify how fire strategy requirements are represented within fire safety drawings. Compartment boundaries, protected escape routes, fire barriers, refuge areas, and other fire-resisting elements should be clearly identified and coordinated with architectural layouts.
In practice, fire safety planning focuses on three fundamental objectives: occupant protection, fire containment, and fire control measures. These objectives are translated into physical design measures through compartment walls, protected corridors, firefighting access provisions, smoke-control strategies, and fire-resisting construction.
When reviewing fire safety drawings, architects should verify that compartment boundaries, protected routes, and fire-resisting elements align with broader fire safety standards and requirements in modern buildings and the project's overall fire strategy. Any discrepancy between these documents can create uncertainty regarding where fire-resisting glazing is required and what level of performance must be achieved.
This verification stage establishes the foundation for all subsequent specification decisions and reduces the risk of late-stage design revisions.
Also read Fire-Rated Glass Systems in India: Standards, Classifications and Compliance
The primary purpose of glazing specifications within fire safety design in buildings is to ensure that the specified assembly satisfies the fire performance requirement identified within the fire safety drawings.
Fire-Resisting Glazing System is a tested assembly consisting of glazing, framing, seals, fixings, and installation details that perform together under fire conditions.
Architects should verify several aspects before approving a specification:
The specification should clearly identify the tested assembly rather than focusing solely on the glass component. Fire performance is achieved by the entire system, not by the glazing unit in isolation.
Beyond fire classification, architects should also evaluate the key performance properties of architectural glass, including impact safety, acoustic performance, durability, and suitability for the intended application. These characteristics often influence long-term building performance and may affect the final system selection where multiple tested assemblies satisfy the same fire rating requirement.

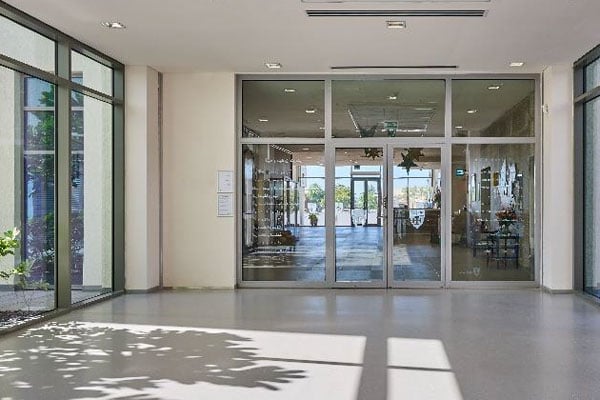

Fire-rated glazing compliance depends on correct specification and installation
Building code compliance is achieved through the correct application of tested and approved systems in the locations identified by the fire strategy and supporting documentation.
Part 4 of the National Building Code of India (NBC 2016) establishes requirements relating to life safety, compartmentation, means of escape, and fire-resisting construction. Fire safety drawings provide the documented basis through which project teams demonstrate that these requirements have been incorporated into the design.
Compliance does not depend solely on selecting a fire-rated product. It depends on whether the specified system is located correctly, detailed correctly, and installed within the conditions covered by its fire test evidence. Approval authorities and fire consultants routinely review these aspects during design assessments and Fire NOC submissions. Since local Fire NOC requirements may vary between states, project teams should also verify any additional requirements imposed by the applicable authority having jurisdiction.
Successful compliance therefore relies on continuous coordination between architects, fire consultants, façade consultants, specification consultants, and contractors throughout the project lifecycle.
Also read Vetrotech Design Solutions®: System-Led Fire Safety for Advanced Architectural Design
Many fire performance issues originate not from incorrect product selection but from poor coordination between fire safety drawings and detailed construction documentation.
Fire-rated glazing performance is determined by the behavior of the complete tested assembly—not the glass alone. Glass, framing, seals, fixings, hardware, accessories and installation details must work together to achieve the required fire resistance rating.
A glazing system may be specified with the correct fire classification, but if it is installed beyond tested dimensions, connected to incompatible wall constructions, or modified during execution, the intended fire performance may not be achieved.
These failures commonly emerge when compartment boundaries are revised after specifications have been issued, when interface conditions are not fully detailed, or when substitution decisions are made without evaluating tested assembly limitations. The consequences can include approval delays, costly re-specification exercises, site redesign, and potential failure to maintain compartment integrity during a fire event.
Many specification issues arise when fire strategy requirements are not coordinated across disciplines. Early-stage fire-safe glazing design support can help project teams identify potential conflicts before construction documentation is finalized. Resolving these issues during design development is significantly less disruptive than addressing them during procurement or construction.
Also read Secure Your Home with Vetrotech’s High-Security Glass
If you are reviewing fire safety drawings and finalizing glazing specifications for a complex commercial, healthcare, aviation, hospitality, or high-rise project, ensure that system performance, tested configurations, and interface requirements are evaluated together before the specification is frozen. Additional technical information on fire-safe glazing solutions for building projects can help support specification decisions during design development and approval reviews. For projects involving complex fire strategy requirements, compartment interfaces, or specification validation, architects may also connect with a Vetrotech specialist to discuss project-specific performance requirements, tested system limitations, and coordination considerations. Early alignment between fire safety drawings and glazing specifications reduces the likelihood of redesign, approval delays, and execution-stage conflicts.
What are fire safety drawings used for?
Fire safety drawings identify compartment boundaries, protected escape routes, fire barriers, and other life-safety measures required within a building. They communicate how the fire strategy is implemented through the design and provide the documented basis for fire safety planning, consultant review, authority approvals, and building code compliance under NBC 2016 Part 4.
What should architects verify before finalizing fire-safe glazing?
Architects should verify the glazing location within fire safety drawings before finalizing any specification. They should confirm compartmentation requirements, required fire classifications, tested assembly limitations, interface details, and installation conditions. Reviewing these elements together helps prevent specification conflicts that may affect approvals, construction, or fire performance.
What information should glazing specifications contain?
Glazing specifications should define the glass type, fire classification, tested dimensions, framing system, installation limitations, and interface requirements. The specification should reference the complete tested assembly rather than only the glass component because fire performance is determined by the behavior of the entire Fire-Resisting Glazing System during testing.
Why are fire safety drawings important for building code compliance?
Fire safety drawings are important because they demonstrate where fire-resisting construction is required within a building. Approval authorities and fire consultants use these documents to verify that compartmentation, escape routes, and fire barriers have been coordinated with project specifications. NBC 2016 Part 4 relies on this documentation to support compliance assessments.
How do fire strategy requirements influence glazing decisions?
The fire strategy determines where fire-resisting construction is required and establishes the performance objectives that glazing systems must satisfy. These requirements influence fire classifications, compartment locations, escape-route protection measures, and system selection. A glazing specification can only be validated after the associated fire strategy requirements have been clearly identified.
Supporting Passive Fire Protection Through Tested Fire-Rated Glazing Systems?
If you are specifying fire-rated glazing for a high-rise, healthcare, education, hospitality, or commercial project and need to align fire resistance performance with compartmentation requirements, the selection process should begin with the required fire classification and tested assembly performance. Understanding how glazing interacts with walls, doors, and protected circulation routes is essential to achieving compliance and maintaining occupant safety. Review relevant tested glazing applications and assemblies before finalizing specifications, then speak with the Vetrotech experts for project-specific guidance on selecting an appropriate tested fire-rated glazing system.
